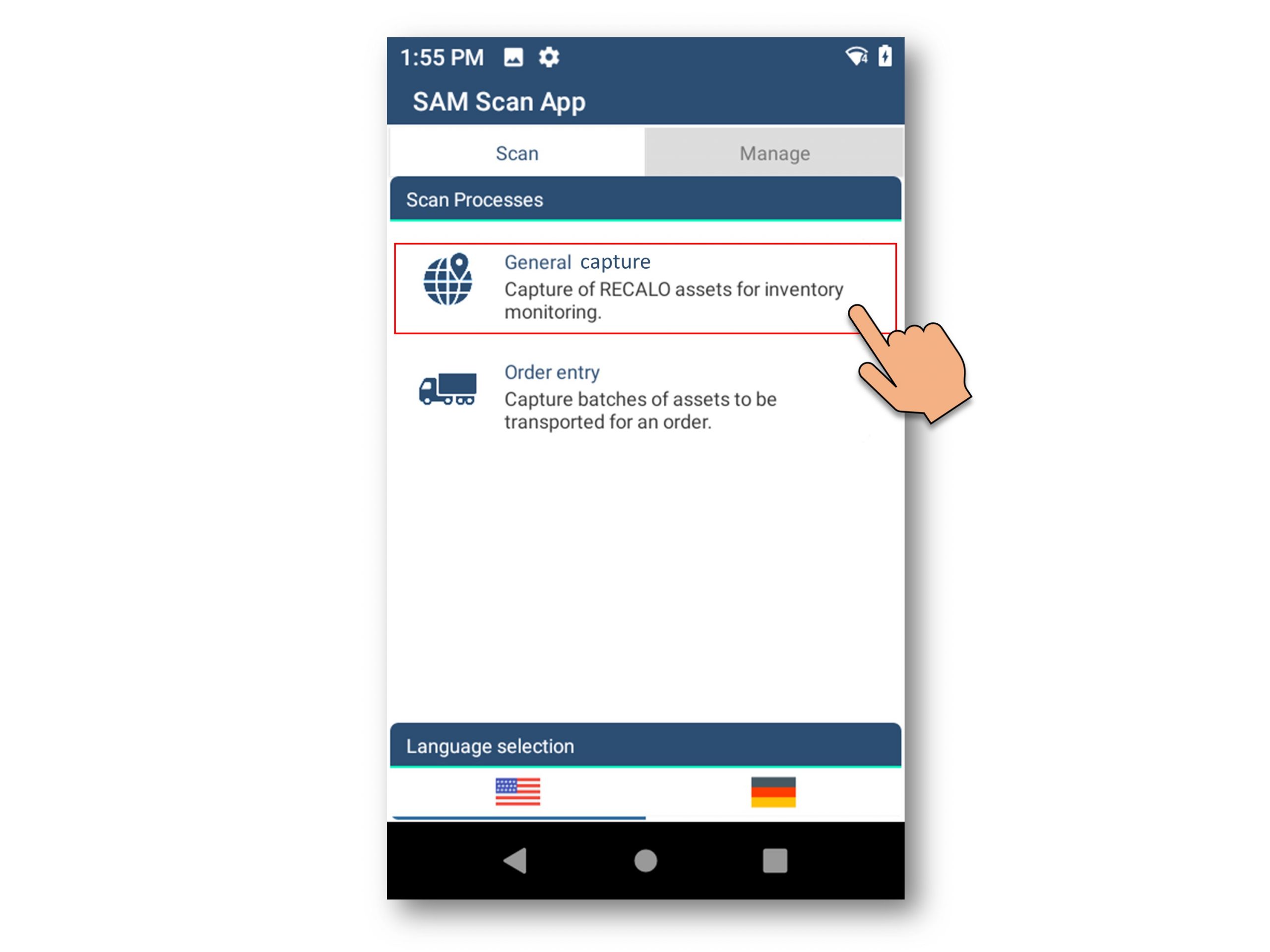

RECALO SAM Scan App – Process – General capture

The use case enables the captureof all own RECALO assets via RFID - optionally optical capture. I.e. only the serial numbers of the own asset types are to be captured. RFID antenna is activated by default.

The technology used - optical barcode capture or alternative capture with RFID - can be easily changed during the reading process.

With this function it is possible to capture RECALO assets. Only own RECALO assets are recognized and shown on the display in terms of quantity.

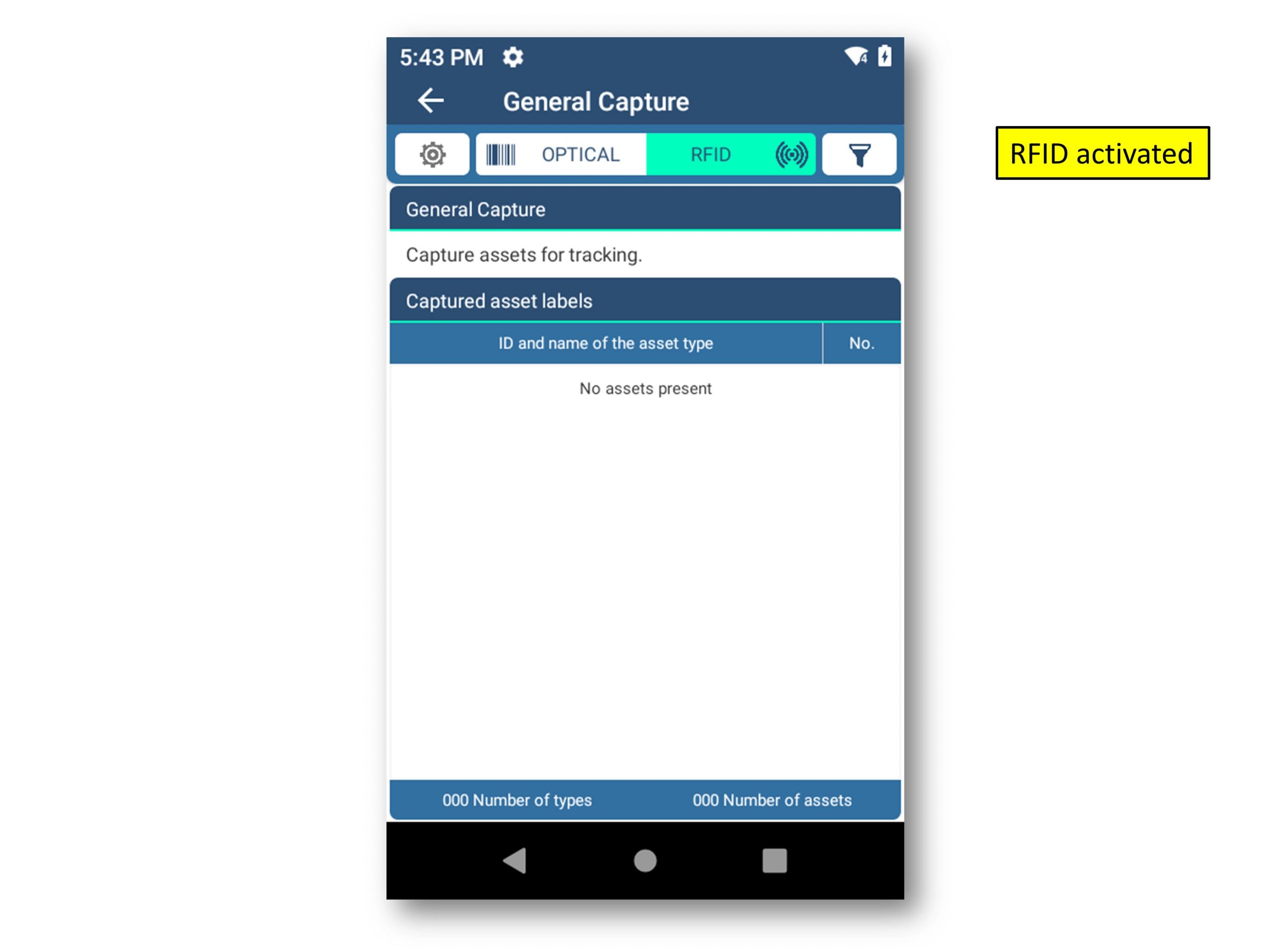

Using RFID technology:

With the RFID antenna, large numbers of different RECALO assets can be uniquely identified within a very short time.

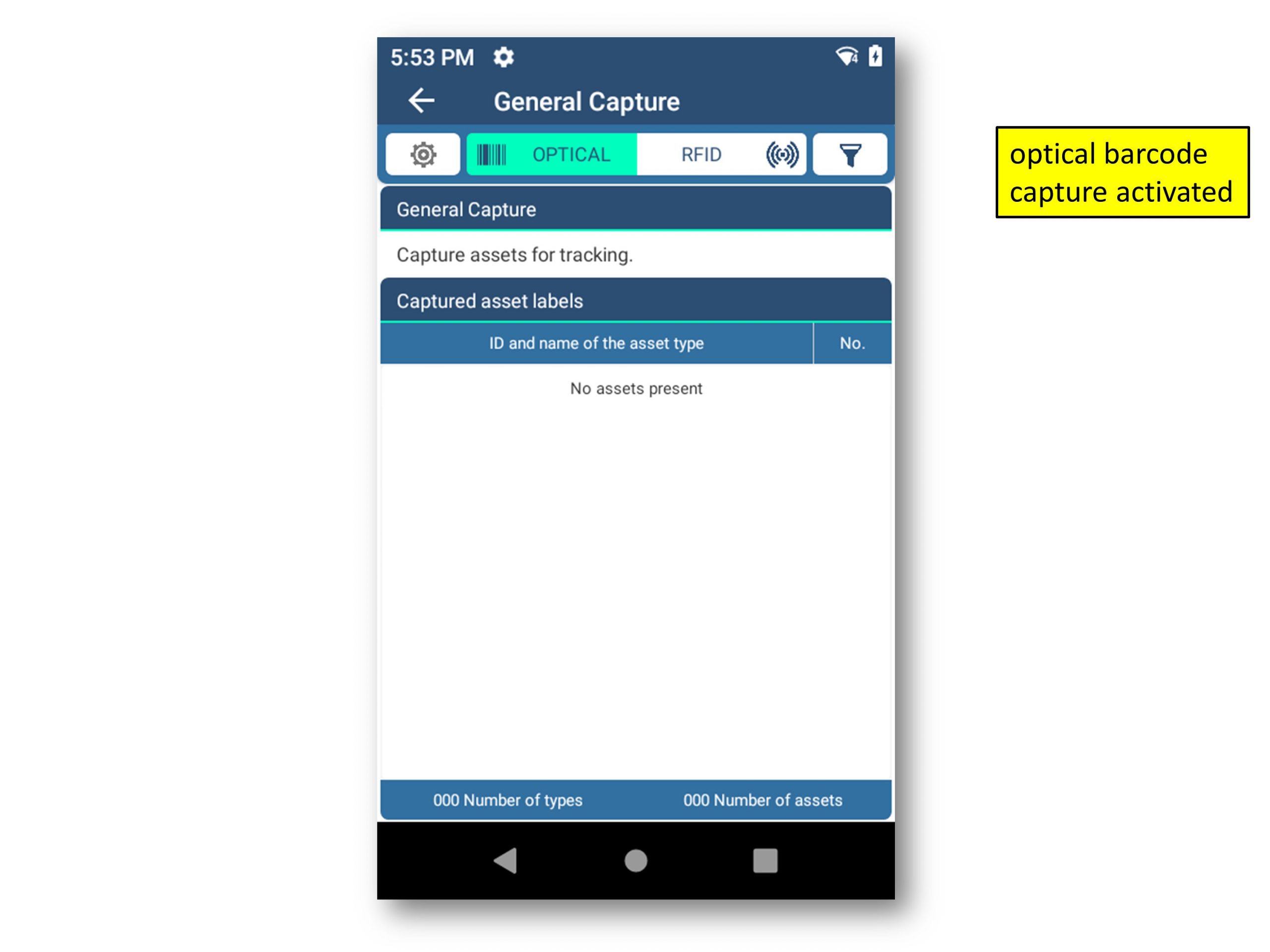

Optical capture:

Each asset must be recorded individually. Simultaneous capture of several assets is not possible optically.

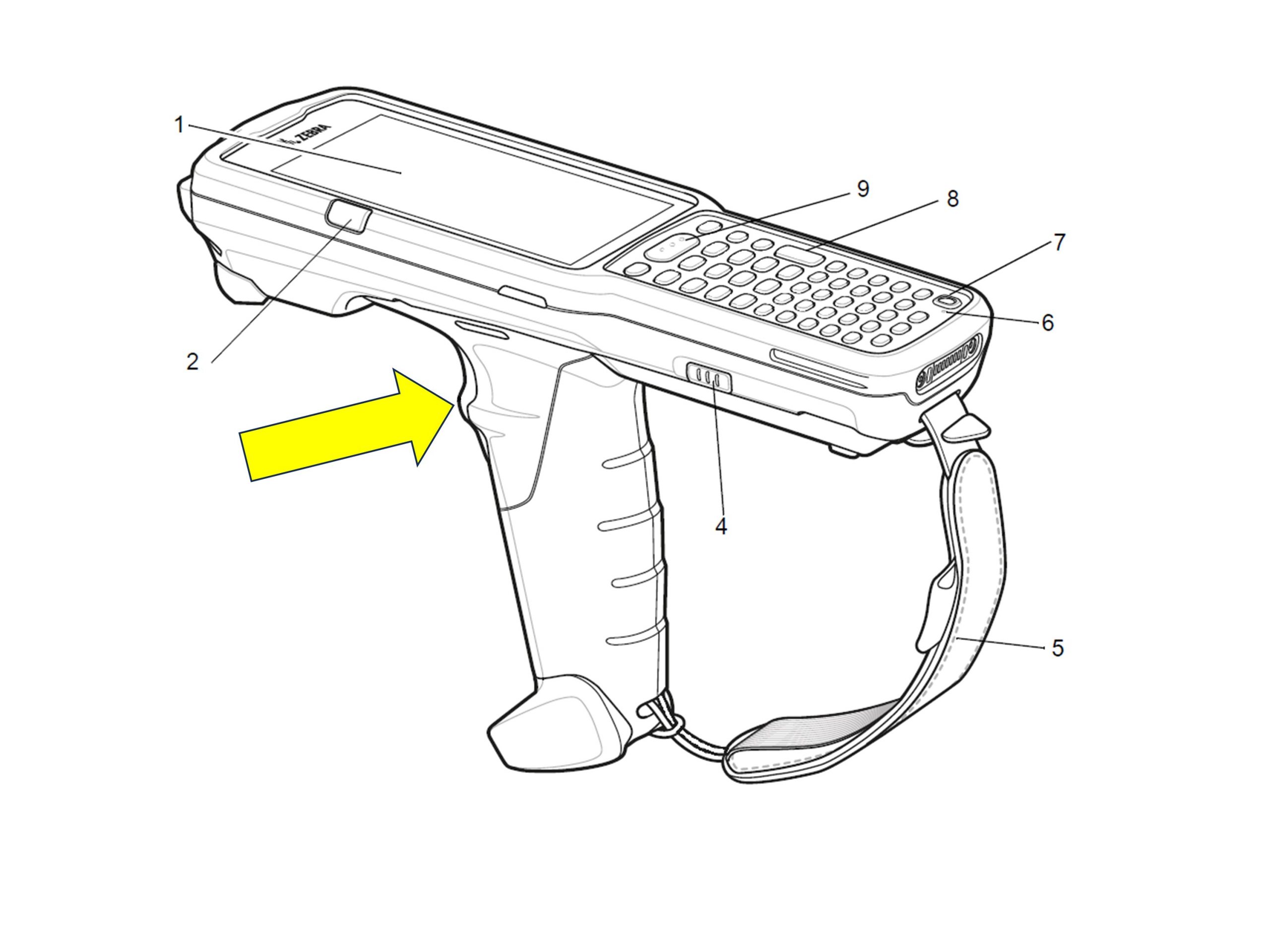

Start of the capture process with using the trigger

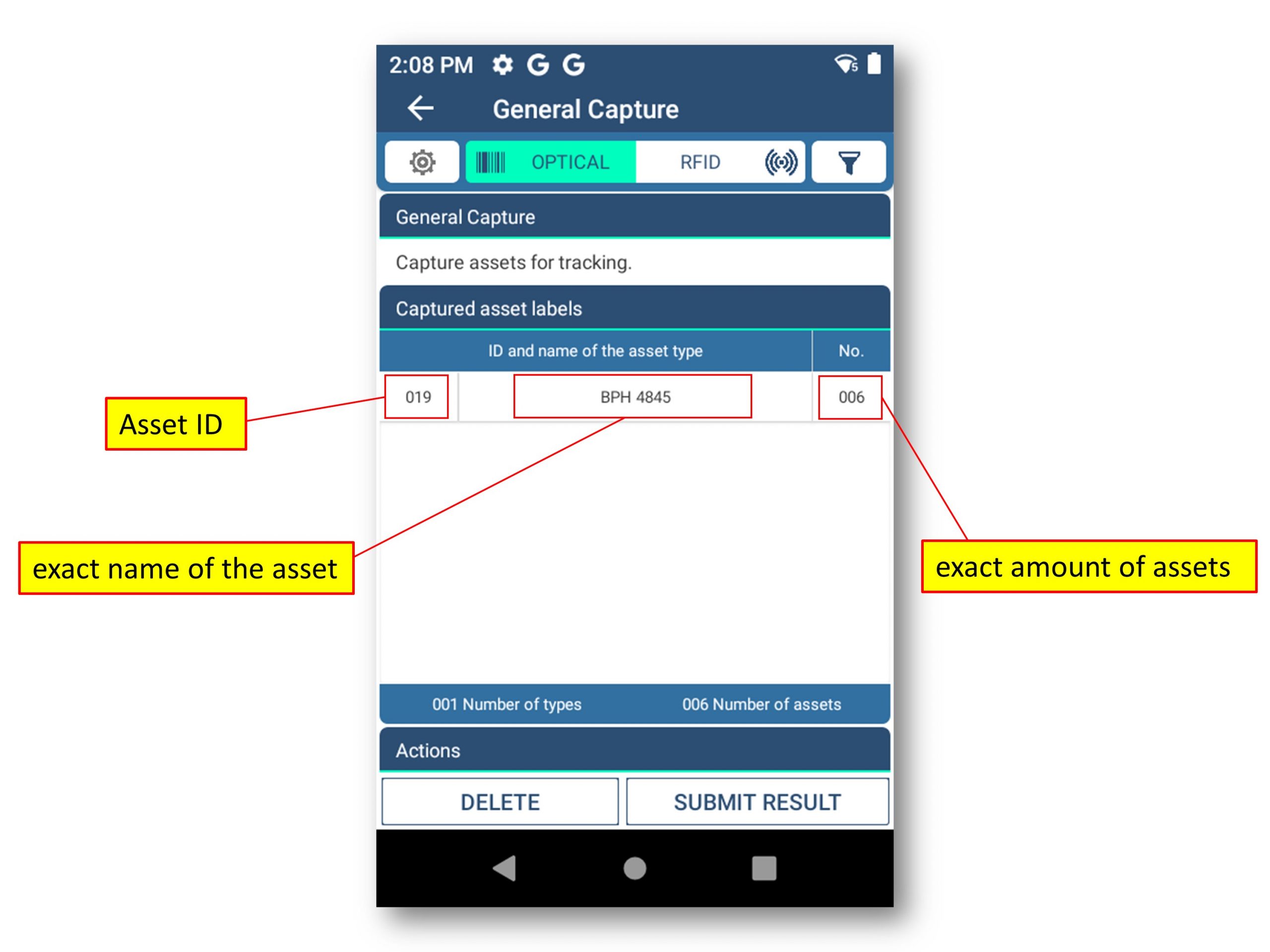

Display of captured assets

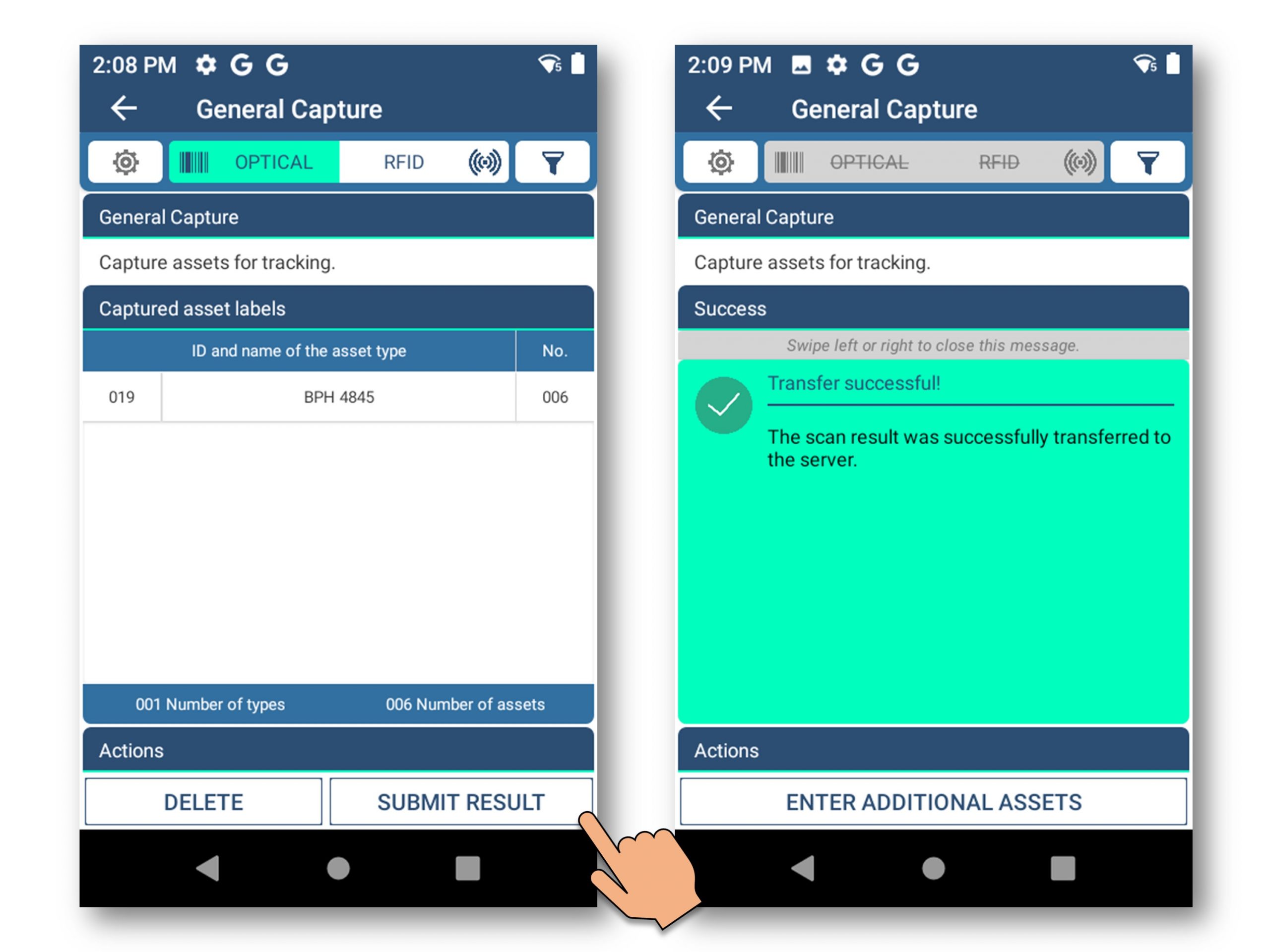

The read assets can be transferred to the system. Alternatively, the result set can be deleted and the capture can be repeated.
